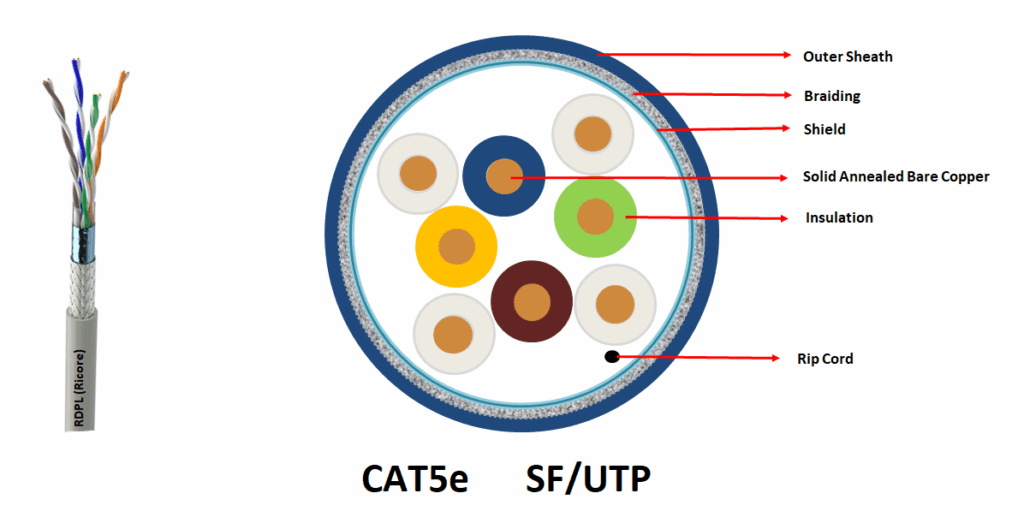

Physical Specifications
- Conductor: Solid Bare Electrolytic Grade Copper
- Conductor Size: 24 AWG
- Insulation: Polyolefin
- Insulation Size: 0.920 ± 0.05 mm
- Pairing: Twisted into two core
- Shielding Tape: 100% Covered with Foil Tape
- Braiding: Braiding with ATC wire
- Sheathing Material: PVC / LSZH / PE
- Sheathing Color: Grey (RAL 7035) or Any as per requirement
- Cable Diameter (Approx): 6.4 mm
