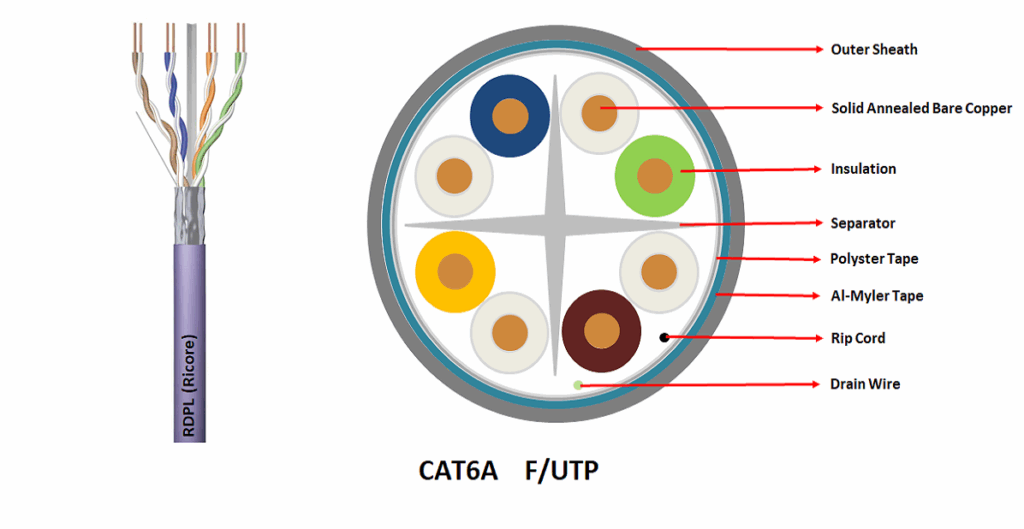

Physical Specifications
- Conductor:Solid Bare Electrolytic Grade Copper
- Conductor Size:23 AWG
- Insulation:Polyolefin
- Insulation Size:1.10 ± 0.05 mm
- Pairing:Twisted into two core
- Shielding:100% Covered with Al Foil Tape
- Drain Wire:Yes
- Sheathing Material:PVC / LSZH / PE
- Sheathing Color:Grey (RAL 7035) or Any as per requirement
- Cable Diameter (Approx):7.0 mm
