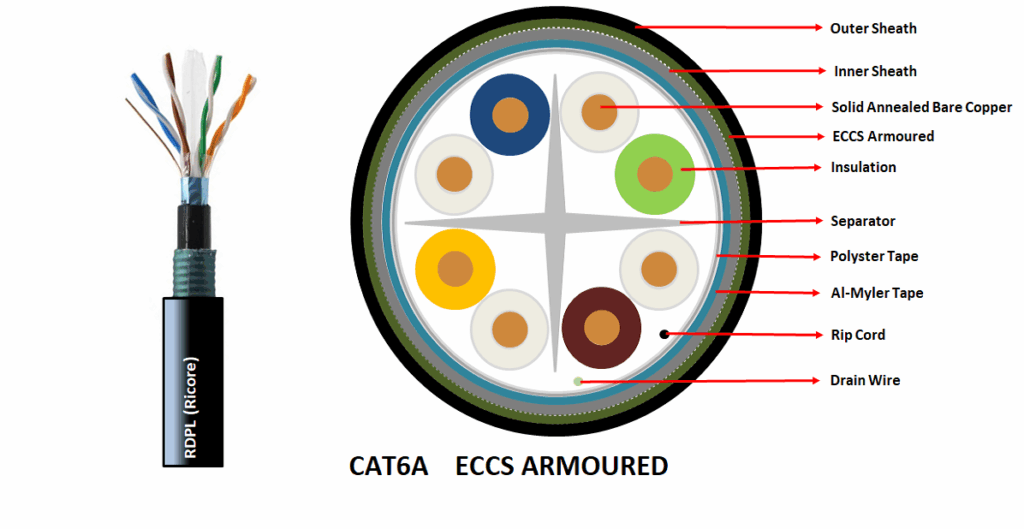

Physical Specifications
- Conductor: Solid Bare Electrolytic Grade Copper
- Conductor Size: 23 AWG
- Insulation: Polyolefin
- Insulation Size: 1.10 ± 0.05 mm
- Pairing: Twisted into two core
- Armoring: Aluminum / ECCS Tape
- Inner Sheath: PVC / LSZH / PE
- Outer Sheathing Material: PVC / LSZH / PE
- Sheathing Color: Black or Any as per requirement
- Cable Diameter (Approx): 10.8 mm
